Tesla LDU full rebuild and repair kit

This Large Drive Unit Kit is meticulously engineered to cater to your vehicle’s specific needs. This kit is thoughtfully composed of 4 hybrid bearings, 4 high-speed bearings, precision gaskets, and 4 specialized seals.

Its primary objective is to deliver a significant boost to your motor’s performance, primarily attributable to the incorporation of high-performance hybrid bearings, guaranteeing that your vehicle operates at its peak efficiency. Bearings are exceptional, combining steel rings with silicon nitride Si3N4 rolling elements.

They offer numerous benefits:

• Insulation: Protects against electric current passage.
• Higher Speed Suitability: Reduced centrifugal force due to lightweight rolling elements.
• Lightweight: Silicon nitride is 60% lighter than conventional steel.
• Extended Service Life: Longer bearing life and less frequent re-lubrication.
• Reduced Friction: Minimizes heat, especially at high speeds.
• High Wear Resistance: Ensures durability.
• Higher Rigidity: Less deformation in rolling contact areas.
• Reduced Lubrication Risk: Minimizes poor lubrication risks.
• Low Noise: Operates quietly.

Within this all-encompassing kit, you’ll find every critical component necessary for the successful restoration of your engine. User-friendly step-by-step assembly video simplifies the repair process, offering a clear and straightforward guide to help you seamlessly restore your drive unit.

Anticipate spending approximately 5 hours on the repair, making it a convenient and efficient solution to rejuvenate your vehicle’s drive unit. With this kit, you’ll not only revitalize your motor but also ensure it performs at its best for a long time to come.

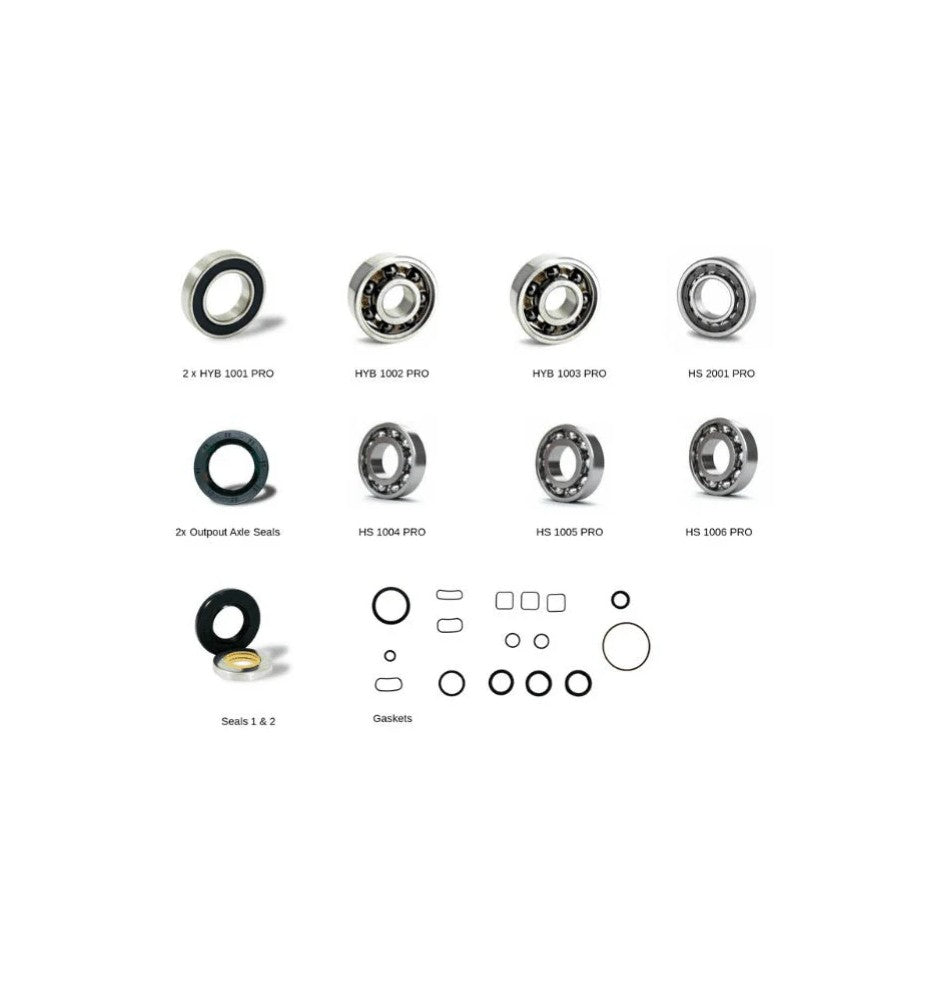

Includes:

HYB 1001 PRO – Rotor Hybrid bearings – 2pcs.
HYB 1002 PRO – Input shaft hybrid bearing – 1pc.
HYB 1003 PRO – Input shaft hybrid bearing – 1pc.
HYB 1004 PRO – Main differential high speed bearing – 1pc.
HYB 1005 PRO – Countershaft high speed bearing – 1pc.
HYB 1006 PRO – Main differential high speed bearing – 1pc.
HS 2001 PRO – Countershaft high speed bearing – 1pc.

PGASKET – O-ring – 13pcs.
PGASKET – Toric cord – 1pc.
PGASKET – Frame – 3pcs.
PGASKET – Square – 3pcs.
PSEAL0001 – Premium rotor seal – 1pc.
PSEAL0002 – Premium rotor seal – 1pc.
PSEAL0003 – Output Axle Seals – 2pcs.
